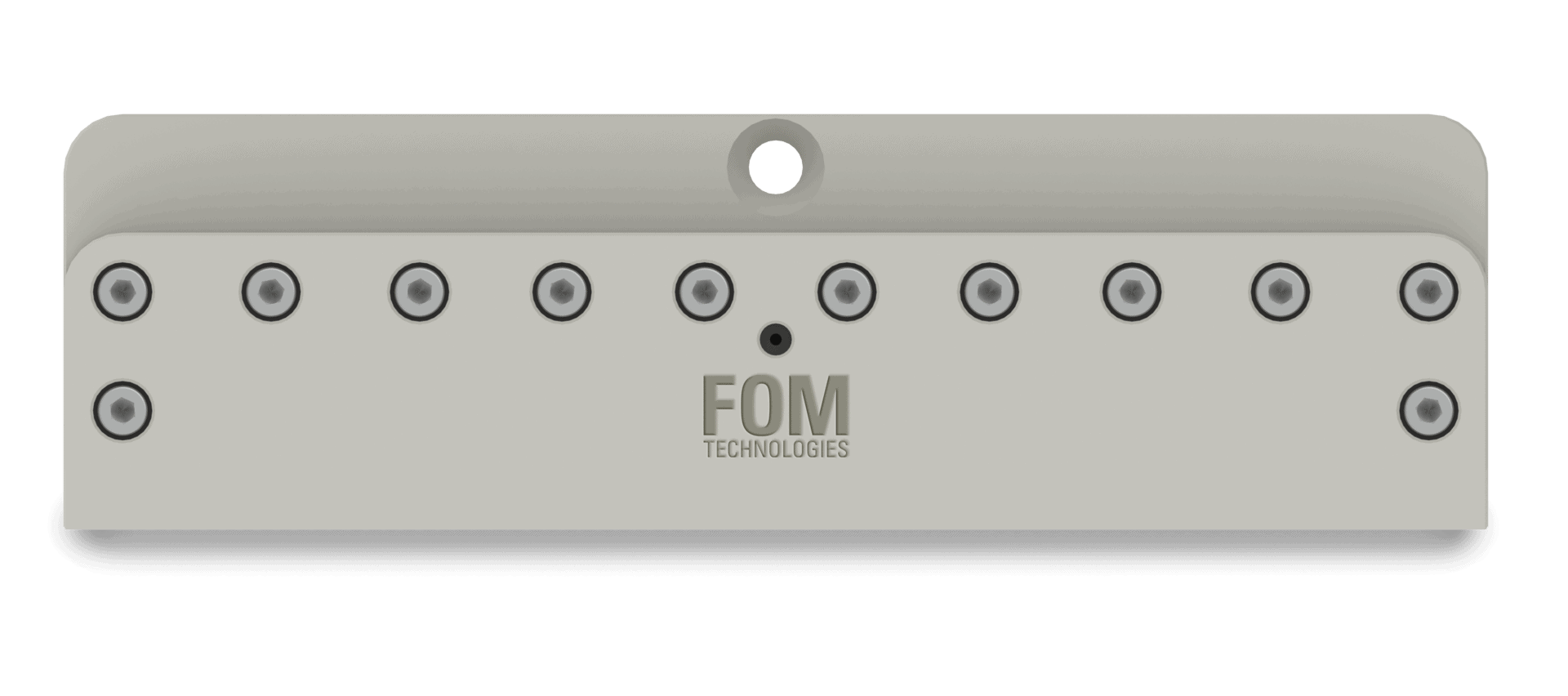

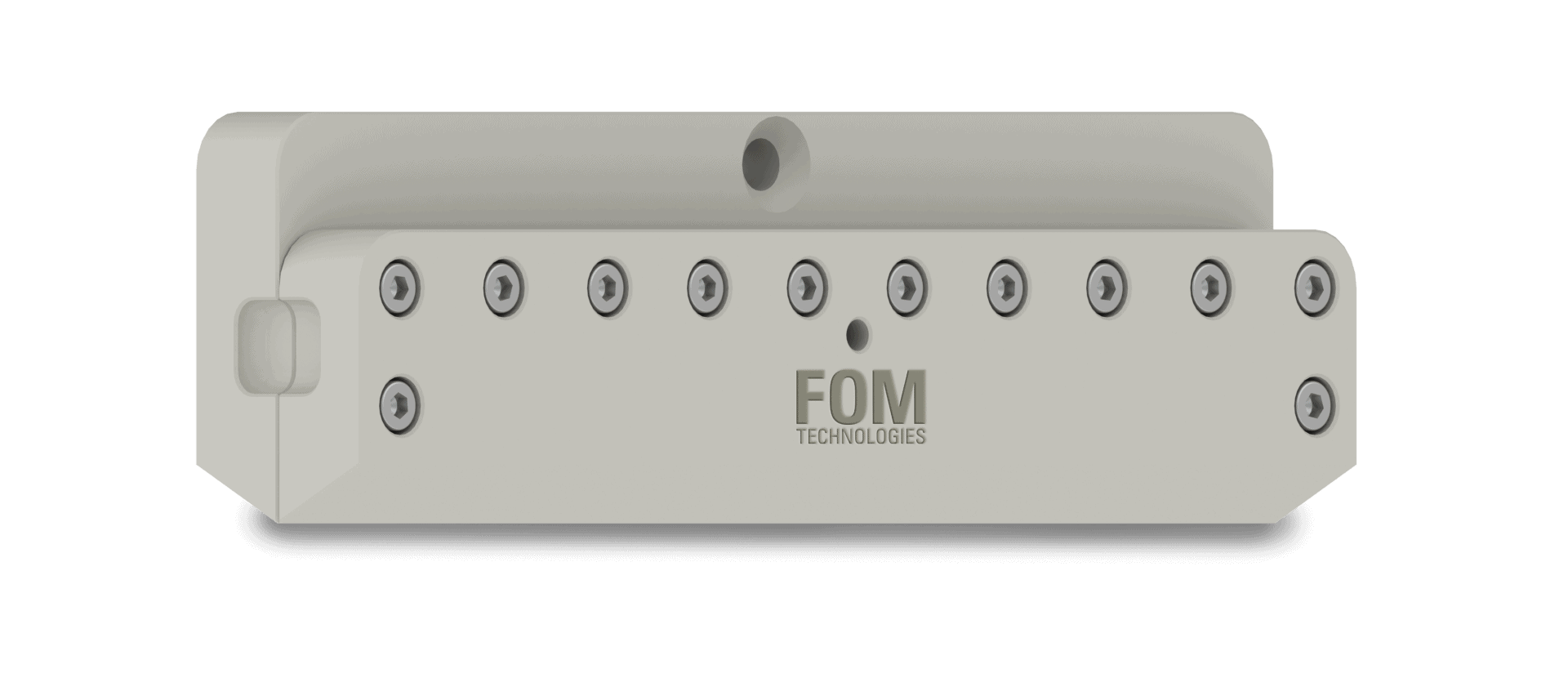

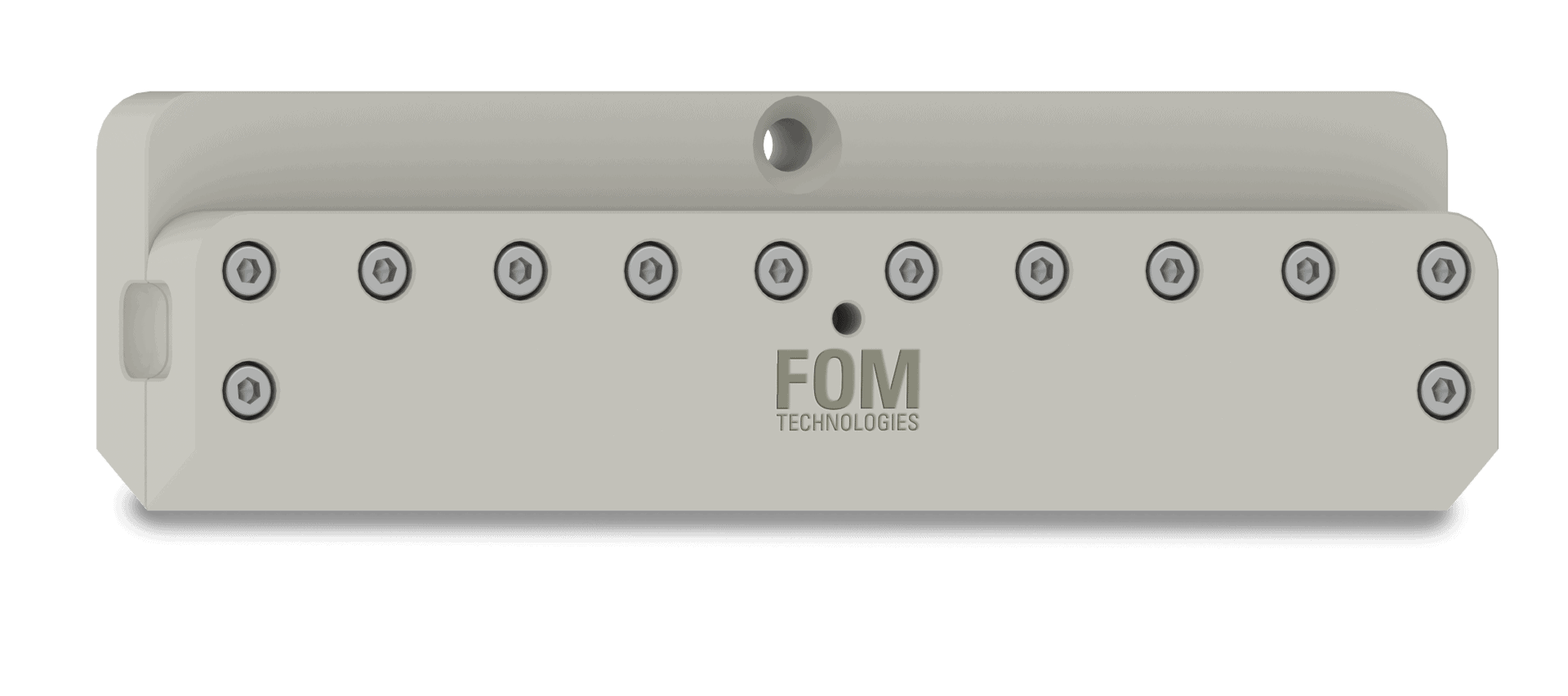

PEEK slot-die head FOM SD 200

The widest head in the PEEK series, for coating widths from 1 mm to 200 mm, for chemistries that attack stainless steel.

200 mm PEEK head for sheet and roll-to-roll

  • Coating width from 1 mm to 200 mm
  • Fits seven current FOM sheet and roll-to-roll machines
  • PEEK body for chemistries that attack stainless steel

In addition to that...

  • Flatness tolerance of 10 µm or better
  • PEEK body with a non-metallic wetted surface
  • Standard and high viscosity versions
  • Single manifold
  • Stripe and patterned coating with custom shims
  • Use with or without a meniscus guide
  • Shims and meniscus guides shared with the Steel series
  • Interchangeable with the Steel series FOM SD 200

System overview

The PEEK version of the FOM SD 200 coats widths from 1 mm to 200 mm in a PEEK body, for chemistries that attack stainless steel. It uses the same mounting interface, shims and meniscus guides as the Steel series FOM SD 200 and fits the FOM scalarSC, vectorSC and alphaSC sheet coaters and the omicronR2R, omegaR2R, compact moduloR2R and moduloR2R roll-to-roll lines.

The shim sets the coating width and the stripe pattern, and the meniscus guide stabilizes the bead. Where tighter flatness matters more than chemical compatibility, the Steel series FOM SD 200 is the alternative.

FOM SD 25 to 200 datasheet front page

Datasheet

Technical data for the Steel series FOM SD 25 to SD 200 and the PEEK series, in one overview.

Material PEEK
Coating width 1 mm to 200 mm
Dimensions (L × W × H) 240 × 40 × 70 mm
Weight 0.72 kg
Versions Standard and high viscosity
Flatness ≤ 10 µm
Shims & meniscus guides Shared with the Steel series, 50 µm to 500 µm
Machine compatibility FOM scalarSC, vectorSC, alphaSC, omicronR2R, omegaR2R, compact moduloR2R, moduloR2R

Connect with our experts

Every coating project starts with a material and a substrate. Tell us about yours, and our Science & Learning team will work through the process with you, from first trials in the lab to a process that holds at the scale your research requires.

What will be helpful to include in your message

  • Your ink or slurry: type, solvent, and approximate viscosity
  • Your substrate: material, and rigid or flexible
  • Your target film thickness and coating width
  • Where your process stands today: first trials, an established recipe, or scale-up
  • Any equipment you already use

Frequently asked questions

What coating width does the FOM SD 200 PEEK head support?

The FOM SD 200 PEEK head coats widths from 1 mm to 200 mm. The width is set by the shim, so one head covers the full range.

Which FOM machines is the FOM SD 200 PEEK head compatible with?

The FOM SD 200 PEEK head fits the FOM scalarSC, vectorSC, alphaSC, omicronR2R, omegaR2R, compact moduloR2R and moduloR2R.

When should I choose a PEEK head over a steel head?

Choose PEEK when your chemistry attacks stainless steel, or when a non-metallic wetted surface matters for your formulation. Choose the Steel series when tighter flatness is the priority: 5 µm or better, compared with 10 µm for PEEK.

Can the FOM SD 200 PEEK head replace a steel head on the same machine?

Yes. It uses the same mounting interface, shims and meniscus guides as the Steel series FOM SD 200, so switching between the two needs no change to the machine.

Which versions of the FOM SD 200 PEEK head are available?

The head is available in standard and high viscosity versions.

Can the FOM SD 200 PEEK head coat stripes?

Yes. Patterned shims produce stripes and discrete coating areas. Standard, custom and bespoke patterns are available.
