Compact, versatile roll-to-roll slot-die coater
- Small footprint roll-to-roll slot-die coater
- Fully motorized coating bridge
- Coating width from 1 mm to 300 mm
In addition to that...
- Non-contact coating with µm precision
- Software-controlled syringe pumps
- Intuitive coating software and recipe control
- Broad viscosity range
- Excellent layer uniformity and repeatability
- Seamless fume hood and glove box integration
- Remote support and troubleshooting
- Modular oven system (Hot air, IR, UV, hot air/IR) – sections of 250 mm or 500 mm
System overview

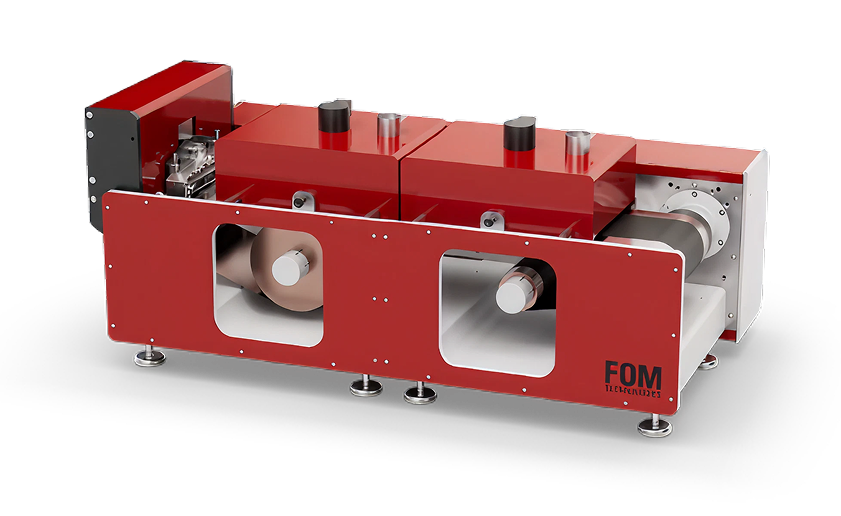

FOM omegaR2R is a versatile lab-scale roll-to-roll slot-die coater designed to replicate pilot-scale coating processes with precision, reproducibility, and scalability. Its modular design and multiple drying options (IR, UV, hot air) enable seamless adaptation to evolving research needs to safeguard your investment.
FOM omegaR2R enables researchers to accelerate and perfect their processes, thereby bridging the gap between lab-scale research and pilot-scale production.
Datasheet
All technical data for the FOM omegaR2R consolidated in an easy overview.
Specifications
| Format | Roll-to-roll |
| Coating width | 1 mm to 300 mm |
| Dimensions (H × W × L) | 680 × 895 × 1570 mm (standard configuration) |
| Weight | 265 kg (standard configuration) |
| Slot-die compatibility | FOM SD 25 – FOM SD 300 |
| Slot-die head heating | Up to 80 °C |
| Oven temperature | Up to 180 °C (hot air) |
| Software | FOM coating software |
| Configuration | Modular — options available |
High throughput desktop roll-to-roll coater
Advanced coating, Lab-scale versatility
FOM omegaR2R is a high-precision roll-to-roll slot-die coater designed to replicate industrial coating processes at lab scale. With an adaptable coating width from 1 to 300 mm, it supports a wide range of applications—from early-stage material screening to pilot-scale formats—giving researchers full control as they scale their innovations.
Modular by nature, built for change
FOM omegaR2R features a fully modular platform that allows easy integration and upgrades. Whether adjusting for new substrates, slot-die heads, or process requirements, the system evolves alongside your research—protecting your investment and supporting long-term development.
Flexible drying for diverse applications
Equipped with interchangeable drying modules—including infrared (IR), ultraviolet (UV), and hot air—FOM omegaR2R supports a variety of material systems and research needs. This drying flexibility ensures optimal performance and process control, no matter the formulation.
Smart software. Consistent results
An intuitive software interface gives researchers precise control over coating parameters and enables recipe saving for repeatable, high-quality results. Combined with motorized slot-die positioning and real-time monitoring, it streamlines workflows and enhances reproducibility across experiments.
Smart features and high performance
A closer look at FOM omegaR2R — the coating bridge, the modular oven sections, and the web handling that keeps a continuous process stable from the first meter to the last.
Every coating project starts with a material and a substrate. Tell us about yours and our coating experts will work through the process with you — from first trials in the lab to a route toward roll-to-roll.
Let our coating experts guide you
Frequently asked questions
What coating width does the FOM omegaR2R support?
FOM omegaR2R coats widths from 1 mm to 300 mm on webs up to 320 mm wide, at speeds from 0.1 to 5.0 m/min. It accepts roll diameters up to 250 mm on a 75 mm pneumatic expanding mandrel, with web tension controlled from 10 to 80 N.
Which slot-die heads fit the FOM omegaR2R?
FOM omegaR2R is compatible with slot-die heads from FOM SD 25 up to FOM SD 300. Shims and meniscus guides are available for adjusting coating width and pattern.
What drying options are available on the FOM omegaR2R?
Drying is handled by tool-free interchangeable oven modules in 250 mm and 500 mm sections, up to 2 meters of drying in total. Modules are available as hot air, infrared, ultraviolet, and combined hot air/IR. Hot air ovens reach up to 180 °C, and slot-die head heating runs up to 80 °C.
What does the FOM omegaR2R need to be installed?
The standard configuration measures 680 × 895 × 1570 mm (H × W × L) and weighs 265 kg. It requires a 3-phase 400 V supply at 50/60 Hz with a maximum current of 24 A, compressed air at 5–7 bar (clean, dry, non-lubricated, ISO 8573-1:2010 Class 1.2.3 or better) via a Ø6 mm push-fit connection, and an Ethernet connection over RJ45.
Can the FOM omegaR2R be expanded after installation?
Yes. The machine is built on a modular platform with 250 mm and 500 mm extension modules, adding 25 kg and 37 kg respectively. Oven modules are tool-free and interchangeable, so drying configuration can change as research needs change.
Does the FOM omegaR2R meet European machine safety standards?
FOM omegaR2R is built to EN 60204-1 and ISO 13849-1 (CE), complies with Directive 2006/42/EC Annex II B, and its electrical panel is built to UL508A.
