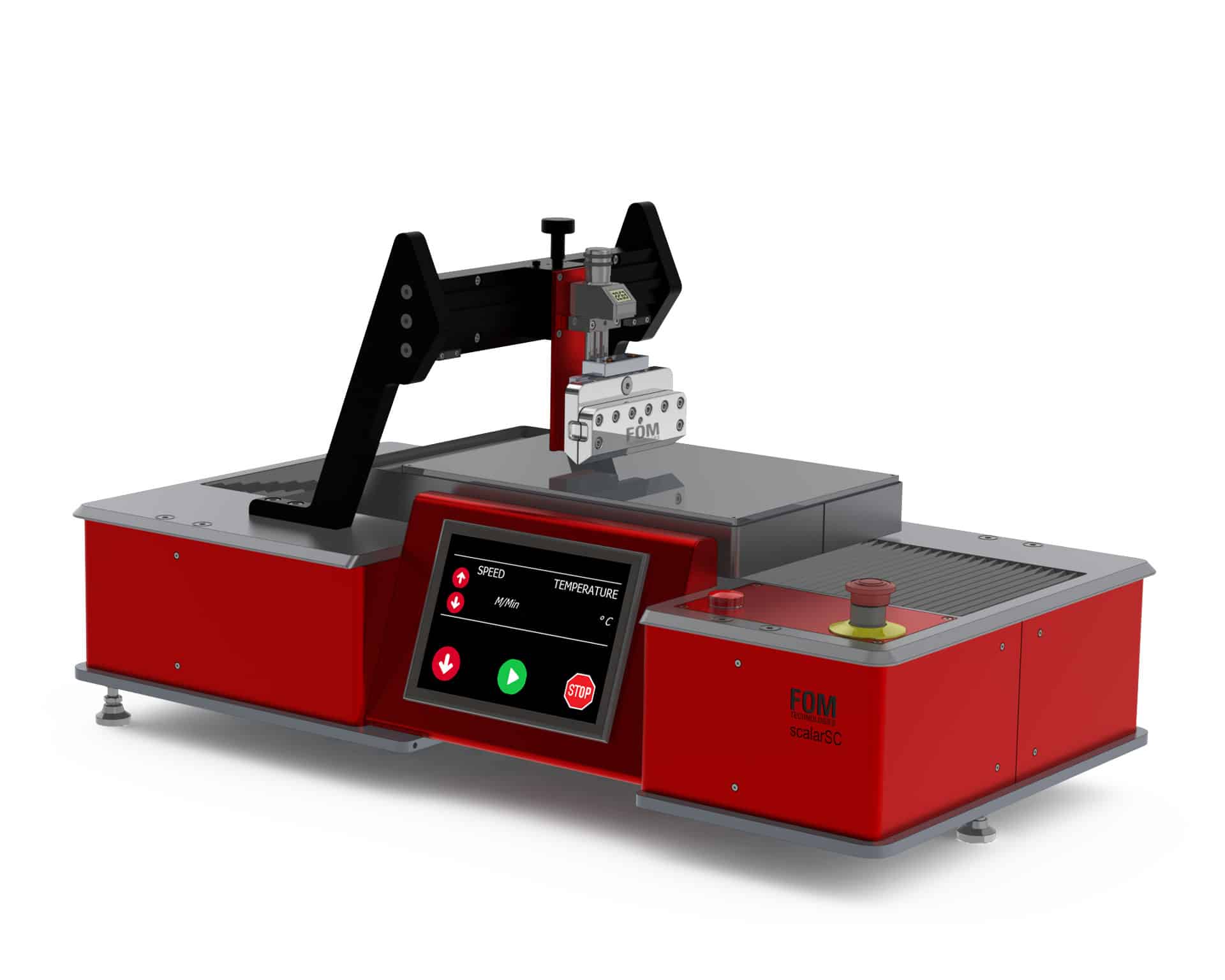

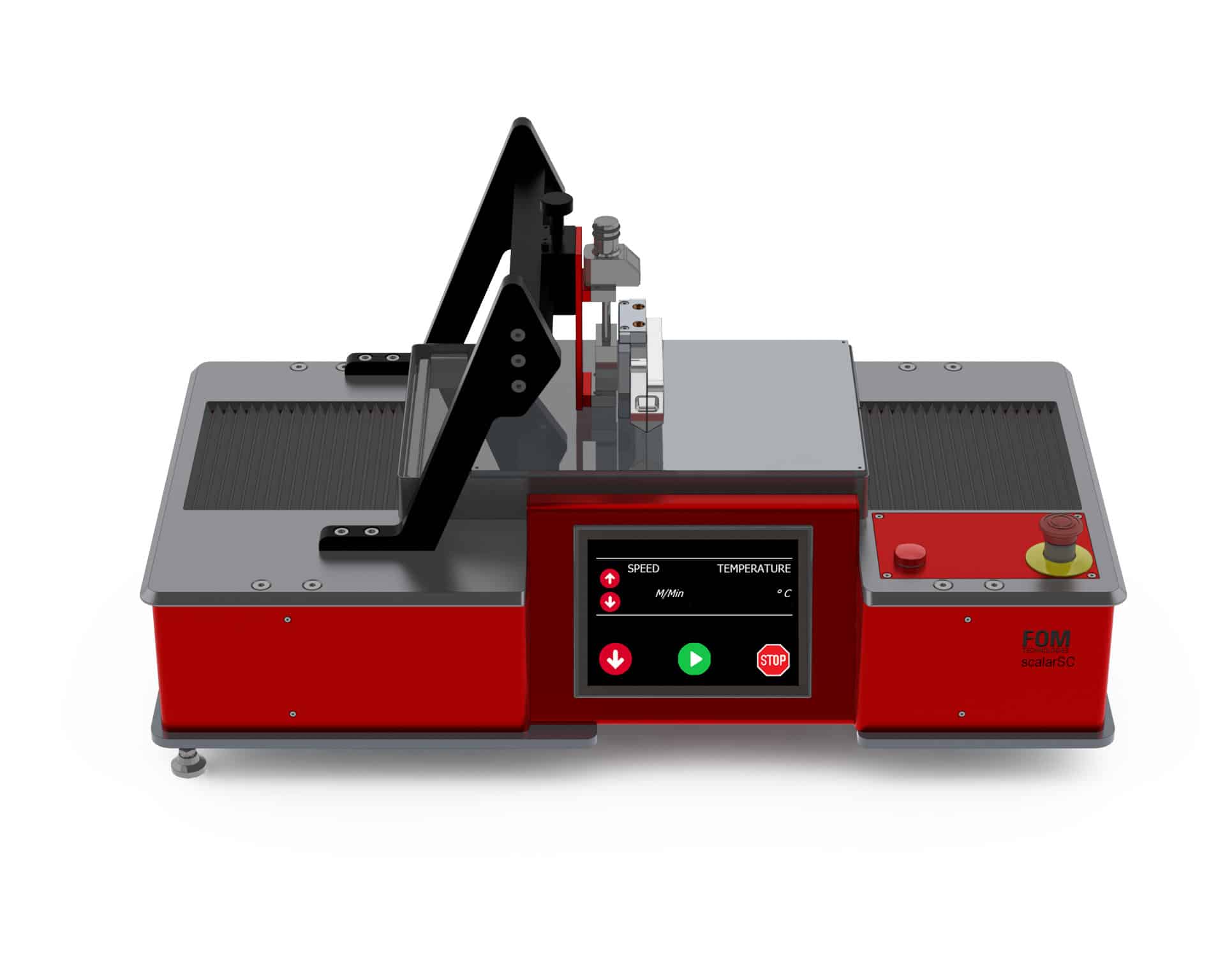

Entry-level | FOM scalarSC

The FOM scalarSC is the ideal entry point to begin scalable coating of functional thin films and devices. The FOM scalarSC has been designed to allow easy control over coating on rigid and flexible substrates while requiring a fraction of the cost and physical footprint. By leveraging years of experience in materials research and slot-die coating, the FOM scalarSC provides the necessary freedom through a simplified design for everyday experimental runs. The FOM scalarSC offers excellent precision and reproducibility for a wide spectrum of lab-scale materials and coating processes relevant to industry and academia.

Key features

  • Non-contact coating within µm precision
  • Uniform dry film thickness from nm to µm
  • Coating width from 1 mm to 200 mm
  • Designed for fluids up to 20,000 cPs
  • Excellent Substrate flatness design
  • Semi-automated coating via intuitive touch panel
  • Designed for rigid and flexible substrates
  • Built-in hotplate for drying
  • Excellent layer uniformity and repeatability
  • Seamless fume hood and glove box integration
  • Plug-and-play installation

Technical specifications

  • Dimensions: 870 x 485 x 470 mm (L x W x H)
  • Weight: 50 kg
  • Substrate holder dimensions: 255 mm x 355 mm
  • Substrate holder heating: Up to 200 oC
  • External syringe reversible pump from 1 ml to 300 ml
  • Intuitive HMI touch panel interface
Coating
  • Coating width: 1 mm to 200 mm
  • Coating length: Up to 300 mm
  • Coating speed: 0.01 up to 5.0 m min-1
  • Slot-die compatibility: FOM SD 25 – FOM SD 200

Robust slot-die sheet coating system

The system is designed for the fast-and-easy coating of functional materials in laboratories aiming for multi-user high throughput research on topics such as organic and perovskite electronics, sensors and energy storage. We are continuously working on improving the simplified design of the FOM scalar tool, we recommend it not only for its entry-level investment but also for allowing higher operator freedom and quick workflow.

Step up from spin coating

Whether you are doing fundamental research or developing a new process for your product, the FOM scalar is the perfect next step from spin coating toward medium-scale, industry-relevant processing where rigid and/or flexible substrates are required. It offers a compact setup that can be easily installed inside a laminar flow hood or a glovebox. Additionally, the external syringe pump will allow a better design of your workspace.

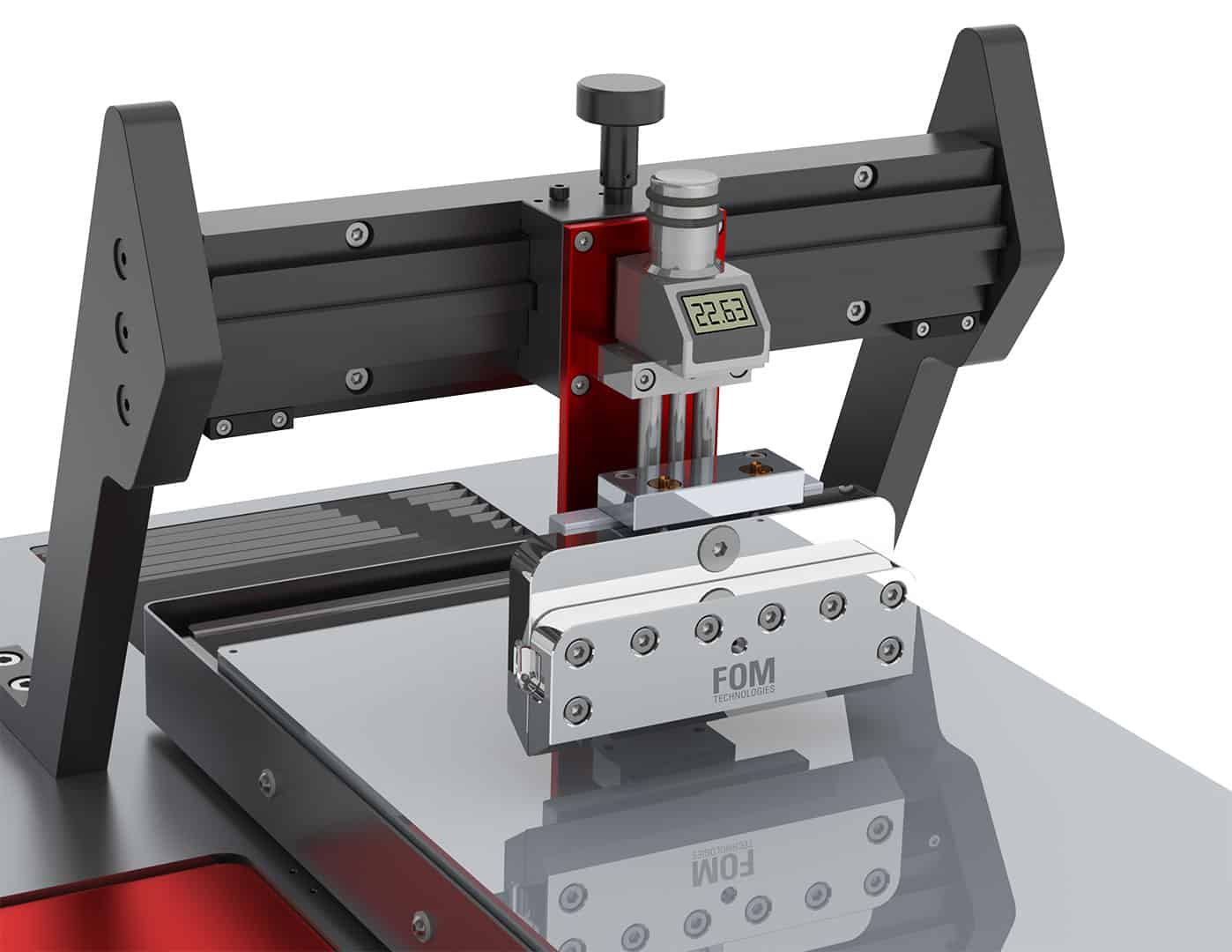

Simple handling and alignment

Both flexible and rigid substrates of up to 300×200 mm in size can be freely positioned on the high-flatness aluminium-made sample holder. The Infinite-step height and lateral position manual dial will allow for systematic, quick-reaction experimental runs and systematic studies where the operator has full control at all times.

Let’s talk about how we can help youSpeech bubbles

Want to learn how slot-die coating can help you get consistent and scalable research results?

FOM Technologies coating equipment supports cutting-edge research into 3rd generation solar cells, OLED and electrochromic devices, fuel cells, batteries, sensors, membranes, printed electronics, medical diagnostics, conductive thin films, and more.

Related products

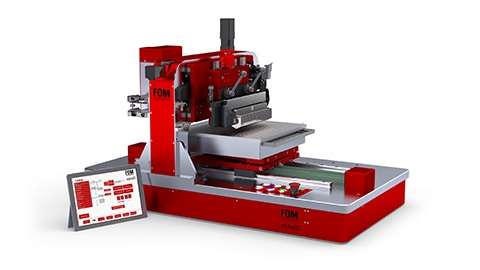

FOM alphaSC with it's software

Advanced level |
FOM alphaSC

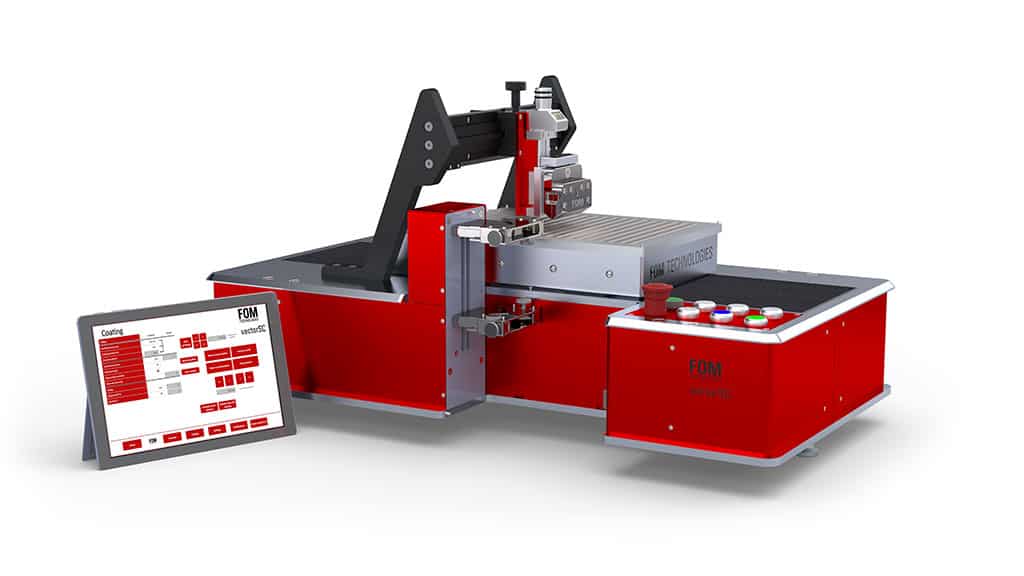

FOM vectorSC
